Rak Series HNT sareng Aktuator Linier Pinion

Rak Series HNT sareng Pinion Linear Actuator Gambar Diulas
  • Rak Series HNT sareng Aktuator Linier Pinion

Pamilih modél

  • runtuyan:
    140D 175D 220D 270D
  • Jenis panutup:
    Satengah Dikurung Panutup handap
  • Gear kalungguhan:
    100 mm
  • Pangulangan:
    Biasa ± 0,04
  • Stroke (Customizable):
    100 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 550 mm 600 mm 650 mm 700 mm 750 mm 800 mm 850 mm 900 mm 950 mm 1000mm 1050 mm 1100 mm 1150 mm 1200 mm 1250 mm 1300 mm 1350 mm 1400 mm 1450 mm 1500mm 1550 mm 1600 mm 1650 mm 1700 mm 1750 mm 1800 mm 1850 mm 1900 mm 1950 mm 2000mm 2050 mm 2100 mm 2150 mm 2200 mm 2250 mm 2300 mm 2350 mm 2400 mm 2450 mm 2500 mm 2550 mm 2600 mm 2650 mm 2700 mm 2750 mm 2800 mm 2850 mm 2900 mm 2950 mm 3000mm 3050 mm 3100 mm 3150 mm 3200 mm 3250 mm 3300 mm 3350 mm 3400 mm 3450 mm 3500 mm 3550 mm 3600 mm 3650 mm 3700 mm 3750 mm 3800 mm 3850 mm 3900 mm 3950 mm 4000mm 4050 mm 4100 mm 4150 mm 4200 mm
  • Arah Pasang Motor:
    Motor sambungan langsung éksternal
  • Lubang Pamasangan:
    Liang benang Countersunk liang
  • Adaptor motor:

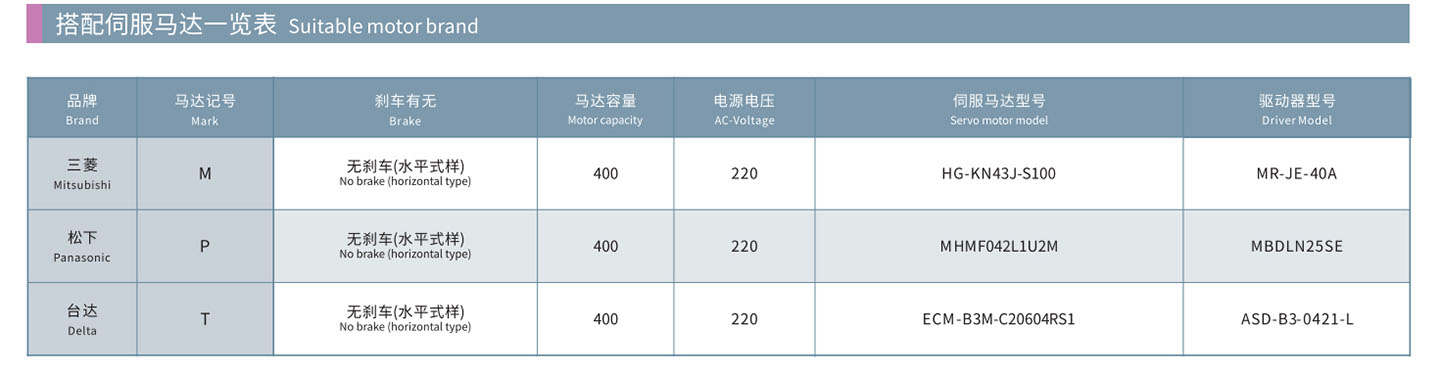

    Panasonic Mitsubishi Yaskawa HCFA Delta Motor stepper Lain
  • Daya Motor:
    400W 60 (Réduksi)
  • Tipe sénsor:
    NPN * 3 lembar PNP * 3 lembar Euweuh
  • model:

    TPA-?-?-??-?-?-?-??-?

  • Jenis panutup:
    Satengah Dikurung Panutup handap
  • Gear kalungguhan:
    133 mm
  • Pangulangan:
    Biasa ± 0,04
  • Stroke (Customizable):
    100 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 550 mm 600 mm 650 mm 700 mm 750 mm 800 mm 850 mm 900 mm 950 mm 1000mm 1050 mm 1100 mm 1150 mm 1200 mm 1250 mm 1300 mm 1350 mm 1400 mm 1450 mm 1500mm 1550 mm 1600 mm 1650 mm 1700 mm 1750 mm 1800 mm 1850 mm 1900 mm 1950 mm 2000mm 2050 mm 2100 mm 2150 mm 2200 mm 2250 mm 2300 mm 2350 mm 2400 mm 2450 mm 2500 mm 2550 mm 2600 mm 2650 mm 2700 mm 2750 mm 2800 mm 2850 mm 2900 mm 2950 mm 3000mm 3050 mm 3100 mm 3150 mm 3200 mm 3250 mm 3300 mm 3350 mm 3400 mm 3450 mm 3500 mm 3550 mm 3600 mm 3650 mm 3700 mm 3750 mm 3800 mm 3850 mm 3900 mm 3950 mm 4000mm 4050 mm 4100 mm 4150 mm 4200 mm 4250 mm 4300 mm 4350 mm 4400 mm 4450 mm 4500 mm 4550 mm 4600 mm 4650 mm 4700 mm 4750 mm 4800 mm 4850 mm 4900 mm 4950 mm 5000mm 5050 mm 5100 mm 5150 mm 5200 mm 5250 mm 5200 mm 5350 mm 5400mm 5450 mm 5500mm 5550 mm 5600 mm 5650 mm
  • Arah Pasang Motor:
    Motor sambungan langsung éksternal
  • Lubang Pamasangan:
    liang threaded liang countersunk
  • Adaptor motor:
    Panasonic Mitsubishi Yaskawa HCFA Delta Motor stepper Lain
  • Daya Motor:
    400W 90 (Réduksi)
  • Tipe sénsor:
    NPN * 3 lembar PNP * 3 lembar Euweuh
  • model:

    TPA-?-?-??-?-?-?-??-?

  • Jenis panutup:
    Satengah Dikurung Panutup handap
  • Gear kalungguhan:
    199 mm
  • Pangulangan:
    Biasa ± 0,04
  • Stroke (Customizable):
    100 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 550 mm 600 mm 650 mm 700 mm 750 mm 800 mm 850 mm 900 mm 950 mm 1000mm 1050 mm 1100 mm 1150 mm 1200 mm 1250 mm 1300 mm 1350 mm 1400 mm 1450 mm 1500mm 1550 mm 1600 mm 1650 mm 1700 mm 1750 mm 1800 mm 1850 mm 1900 mm 1950 mm 2000mm 2050 mm 2100 mm 2150 mm 2200 mm 2250 mm 2300 mm 2350 mm 2400 mm 2450 mm 2500 mm 2550 mm 2600 mm 2650 mm 2700 mm 2750 mm 2800 mm 2850 mm 2900 mm 2950 mm 3000mm 3050 mm 3100 mm 3150 mm 3200 mm 3250 mm 3300 mm 3350 mm 3400 mm 3450 mm 3500 mm 3550 mm 3600 mm 3650 mm 3650 mm 3700 mm 3750 mm 3800 mm 3850 mm 3900 mm 3950 mm 4000mm 4050 mm 4100 mm 4150 mm 4200 mm 4250 mm 4300 mm 4350 mm 4400 mm 4450 mm 4500 mm 4550 mm 4600 mm 4650 mm 4700 mm 4750 mm 4800 mm 4850 mm 4900 mm 4950 mm 5000mm 5050 mm 5100 mm 5150 mm 5200 mm 5250 mm 5200 mm 5350 mm 5400mm 5450 mm
  • Arah Pasang Motor:
    Motor sambungan langsung éksternal
  • Lubang Pamasangan:
    liang threaded liang countersunk
  • Adaptor motor:
    Panasonic Mitsubishi Yaskawa HCFA Delta Motor stepper Lain
  • Daya Motor:
    750W 1000W 90 (Réduksi) 120 (Réduksi)
  • Tipe sénsor:
    NPN * 3 lembar PNP * 3 lembar Euweuh
  • model:

    TPA-?-?-??-?-?-?-??-?

  • Jenis panutup:
    Satengah Dikurung Panutup handap
  • Gear kalungguhan:
    296 mm
  • Pangulangan:
    Biasa ± 0,04
  • Stroke (Customizable):
    100 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 550 mm 600 mm 650 mm 700 mm 750 mm 800 mm 850 mm 900 mm 950 mm 1000mm 1050 mm 1100 mm 1150 mm 1200 mm 1250 mm 1300 mm 1350 mm 1400 mm 1450 mm 1500mm 1550 mm 1600 mm 1650 mm 1700 mm 1750 mm 1800 mm 1850 mm 1900 mm 1950 mm 2000mm 2050 mm 2100 mm 2150 mm 2200 mm 2250 mm 2300 mm 2350 mm 2400 mm 2450 mm 2500 mm 2550 mm 2600 mm 2650 mm 2700 mm 2750 mm 2800 mm 2850 mm 2900 mm 2950 mm 3000mm 3050 mm 3100 mm 3150 mm 3200 mm 3250 mm 3300 mm 3350 mm 3400 mm 3450 mm 3500 mm 3550 mm 3600 mm 3650 mm 3650 mm 3700 mm 3750 mm 3800 mm 3850 mm 3900 mm 3950 mm 4000mm 4050 mm 4100 mm 4150 mm 4200 mm 4250 mm 4300 mm 4350 mm 4400 mm 4450 mm 4500 mm 4550 mm 4600 mm 4650 mm 4700 mm 4750 mm 4800 mm 4850 mm 4900 mm 4950 mm 5000mm 5050 mm 5100 mm 5150 mm 5200 mm 5250 mm 5200 mm 5350 mm 5400mm 5450 mm
  • Arah Pasang Motor:
    Motor sambungan langsung éksternal
  • Lubang Pamasangan:
    liang threaded liang countersunk
  • Adaptor motor:
    Panasonic Mitsubishi Yaskawa HCFA Delta Motor stepper Lain
  • Daya Motor:
    750W 1000W 120 (Réduksi)
  • Tipe sénsor:
    NPN * 3 lembar PNP * 3 lembar Euweuh
  • model:

    TPA-?-?-??-?-?-?-??-?

    • single_btn_icon_1Gambar PDF single_btn_icon_2STP Gambar single_btn_icon_3Pananyaan

    Rincian produk

    140D

    175D

    220D

    270D

    Modul rak sareng pinion mangrupikeun alat gerak linier anu diwangun ku rel pituduh linier, rak sareng profil extruded aluminium anu nyambung ka motor, reducer sareng gear.

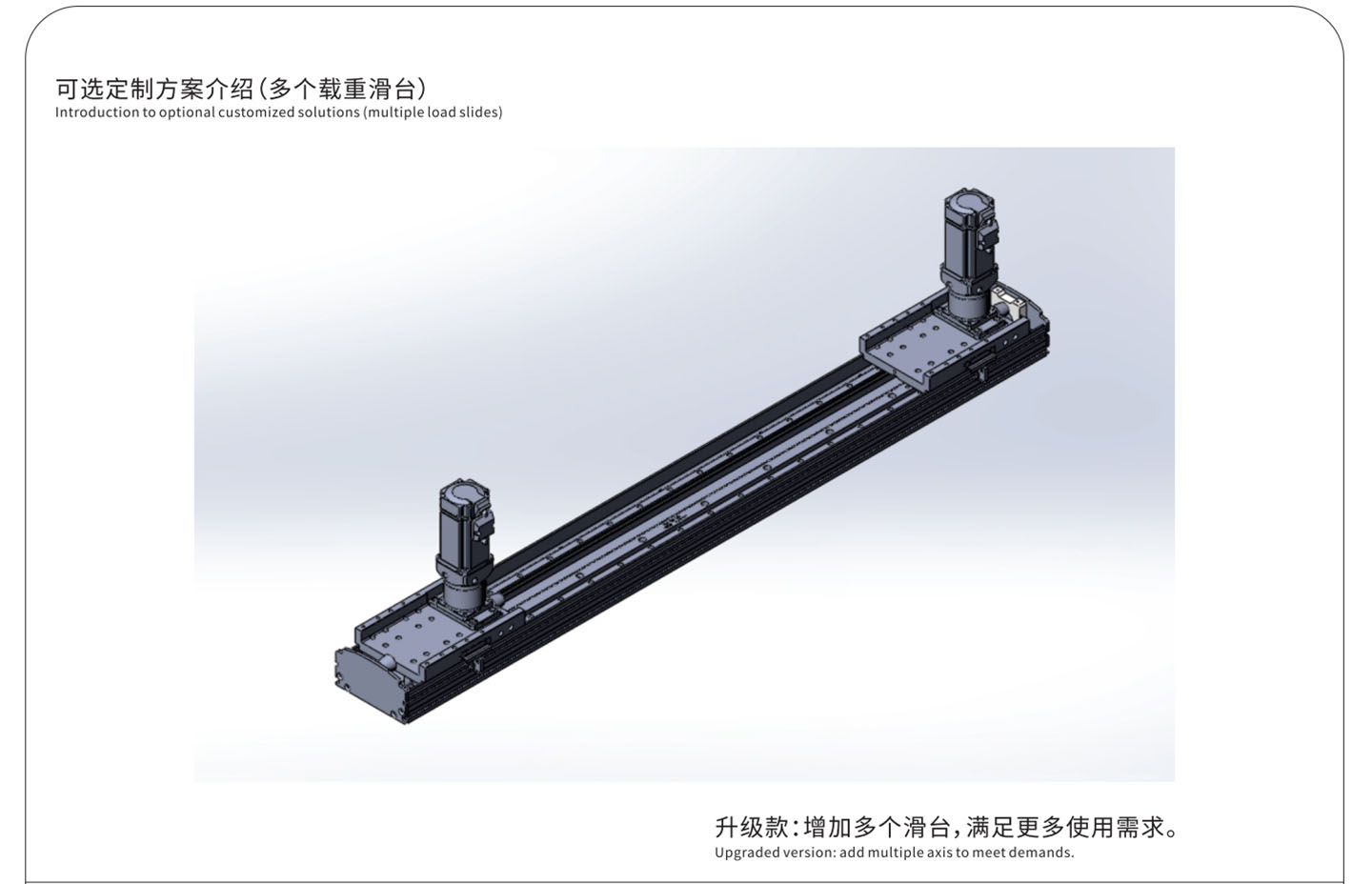

    Rak séri HNT sareng sumbu linier didorong pinion tina TPA ROBOT didamel tina profil aluminium anu diekstrusi sareng dilengkepan ku sababaraha slaider. Malah dina kaayaan beban tinggi, éta masih bisa ngajaga stiffness drive tinggi jeung speed gerak.

    Dina raraga Cope jeung rupa-rupa lingkungan pamakéan, Anjeun bisa milih pikeun dilengkepan panutup organ lebu-bukti, nu teu ngan murah, tapi ogé éféktif bisa meungpeuk lebu ti ngasupkeun atawa escaping modul.

    Kusabab kalenturan tina rak jeung pinion drive modul, nu bisa spliced ​​infinitely, éta bisa jadi sagala stroke linier gerak slaider, ku kituna loba dipaké dina analisis pigura manipulators, gantry manipulators, suntik molding mesin manipulators, alat-alat laser, mesin percetakan. , Mesin pangeboran, mesin bungkusan, mesin woodworking, alat mesin otomatis, leungeun rocker manual, platform kerja otomatis tur industri lianna.





















    runtuyan HNT

    runtuyan HNT

  • Fitur

    Diulang Positioning Akurasi: ± 0.04mm
    Beban Max (Horizontal): 170kg
    Beban Max (Vértikal): 65kg
    Jangkungna: 100 - 5450mm
    Laju Max: 4000mm / s







































    •



















    TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(1)_01 TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(1)_02 TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(1)_03 TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(1)_04 TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(2)_01 TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(2)_02 TPA-HNT-140D-100C-L4200-MC-J60-N3-F-(2)_03



















    TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(1)_01 TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(1)_02 TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(1)_03 TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(1)_04 TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(2)_01 TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(2)_02 TPA-HNT-175D-133C-L5650-MC-J90-N3-F-(2)_03



















    TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(1)_01 TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(1)_02 TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(1)_03 TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(1)_04 TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(2)_01 TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(2)_02 TPA-HNT-220D-199C-L5450-MC-J120-N3-F-(2)_03



















    TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(1)_01 TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(1)_02 TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(1)_03 TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(1)_04 TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(2)_01 TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(2)_02 TPA-HNT-270D-296C-L5450-MC-J120-N3-F-(2)_03







































    (Unit: mm)
